RBtechnik deals with the design and manufacture of innovative and high-tech electronic devices and complex integrated systems.
The organization makes use of a network of professionals with extensive experience in R&D and development of innovative and high-tech products.
Thirty years of experience and collaboration with various national and international companies allow us to provide smart and effective solutions.
Lighting, Home Automation, Building automation devices.
Control devices for home and building automation based on wireless, Cloud and IOT technology.
Light, chromaticity, color sensors and related software
Automatic testing systems for lighting equipment.
OEM design:
Design and start-up of high-tech products.
Software an firmware development.
We have collaborative relationships with several world leading companies in their sector that allow us to offer exclusive and innovative solutions.

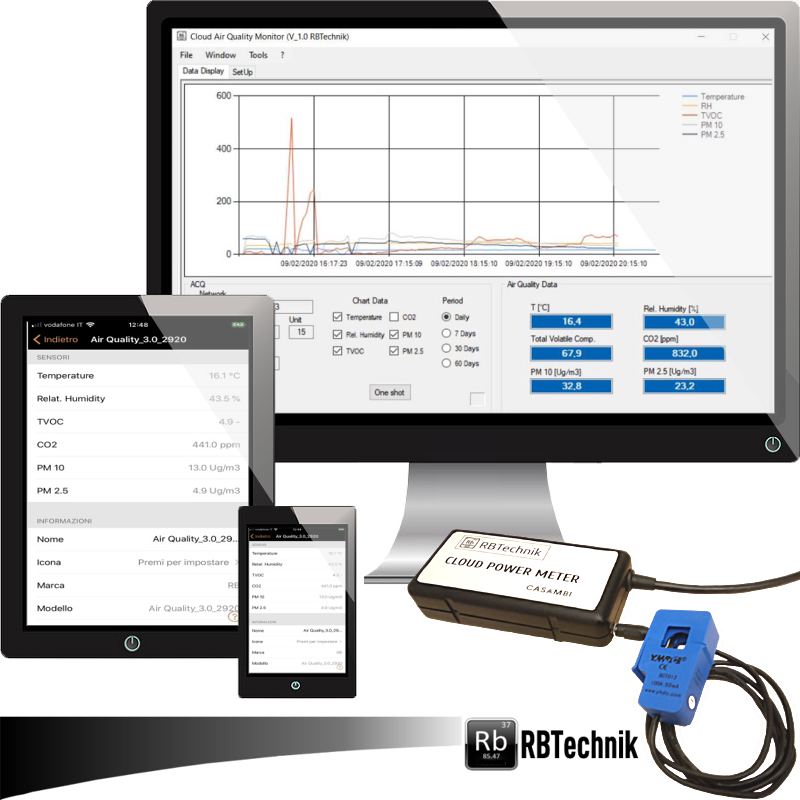

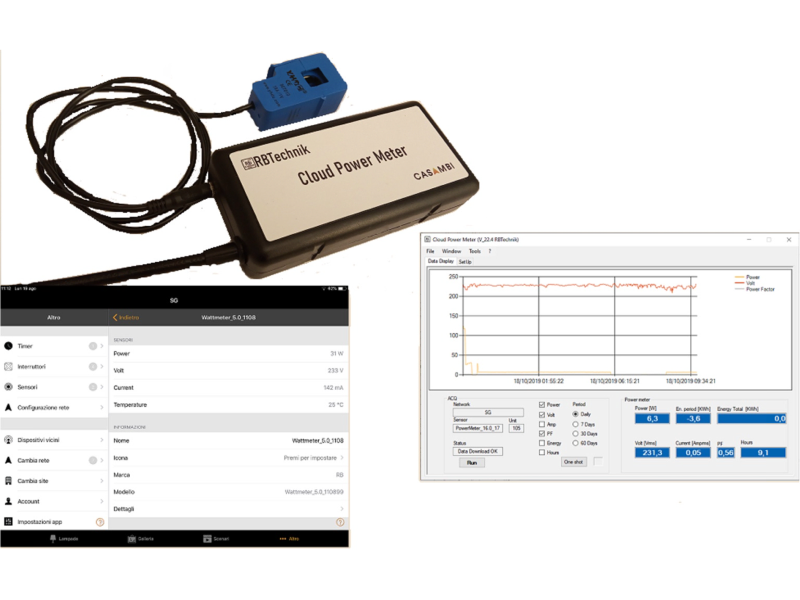

One Phase Mains power meters Casambi ecosystem compatible. Data are visible on Casambi App and on dedicated app retrieving them from Cloud to display and chart. Split core current sensor. No tools, easy installation.

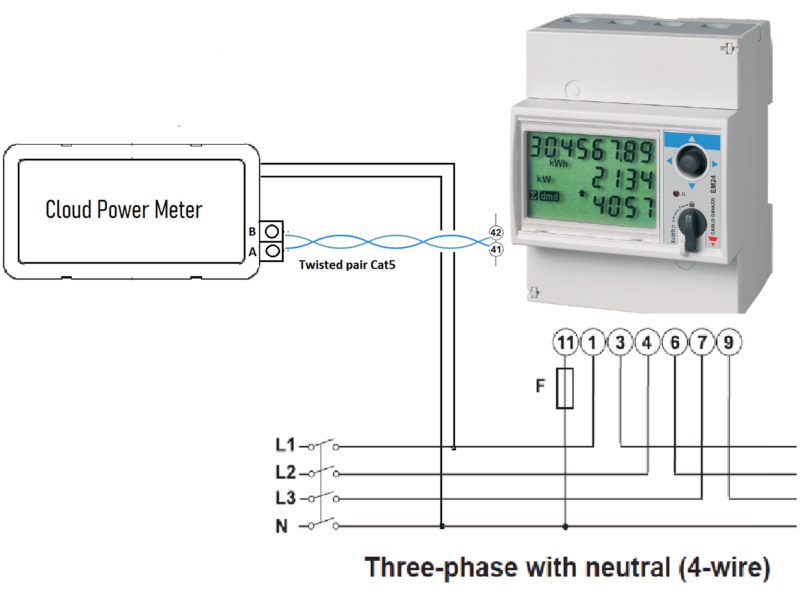

Mono/Three Phase Mains power meters Casambi ecosystem interface. The device can be connected to Modbus RTU compatible commercial power meters. Data are visible on Casambi App and on dedicated app retrieving them from Cloud to display and chart.

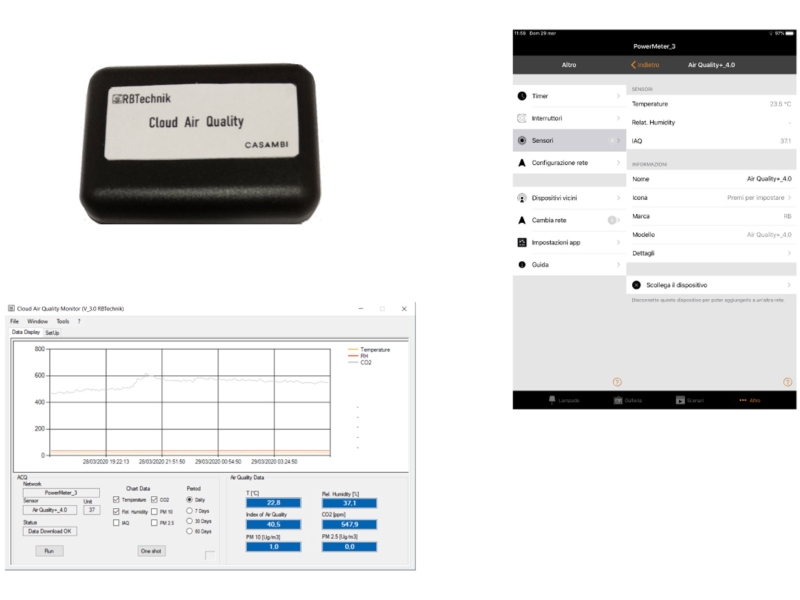

Cloud Air quality Station is a Casambi ready Air Quality sensor station. Air quality relevant data are displaied in the sensor page of Casambi app and stored in the Cloud (Gateway needed).

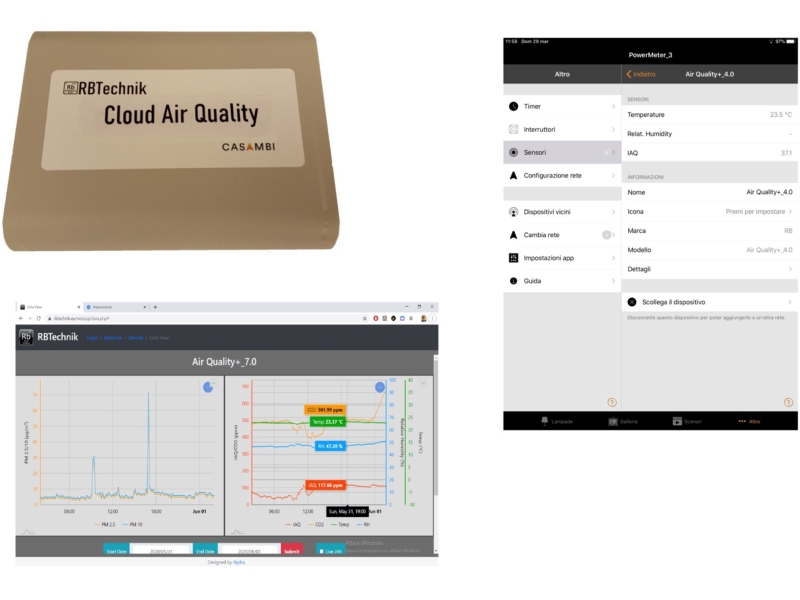

Cloud Air Quality Station Plus is a Casambi ready Air Quality sensor station. Air quality relevant data are displayed in the sensor page of Casambi app and stored in the Cloud (Gateway needed).
RbtCheck is an automatic testing system dedicated to the control and tracking of performance on the production lines of lighting fixtures.
It can operate in conjunction with end-of-line electrical safety test machines. The start of the test procedure takes place automatically during the end-of-line fixture operation test. Tests available:
Illuminance (Lux)
Color temperature (K)
Color rendering index (CRI)
Chromatic coordinates x, y (CIE 1930) with definition of the reference ellipse and SDCM
Type of electrical measurement (Direct current / Alternating current)
Electric power (W)Power factor (PF)
RBTCheck control software is developed in Visual Studio VB.net.
It run on Windows personal computer (Windows 10 -11).
Two free USB port are needed to connect to Spectroradiometer and Control Box.
RBTCheck is standard equipped with a compact CCD array spectroradiometer.
It is possible on request use almost any other colorimeter or spectroradiometer .
RBCK Box interface is the digital measurements ad power control interface.
It allow to test constant current, constant voltage and line lighting fixtures powered.
RBTCheck vertical measure chamber is equipped with a system of diaphragms to eliminate internal reflections.
It has the light sensor on the bottom and on top a glass opening on which to place the lighting fixture under test.
